Make it a clean sweep.

From skilled labor shortages to unpredictable weather and the demand for higher-quality hay, these rakes are designed to help hay producers achieve better results through greater forage quality and increased field performance—helping you tackle inefficiencies and produce superior results.

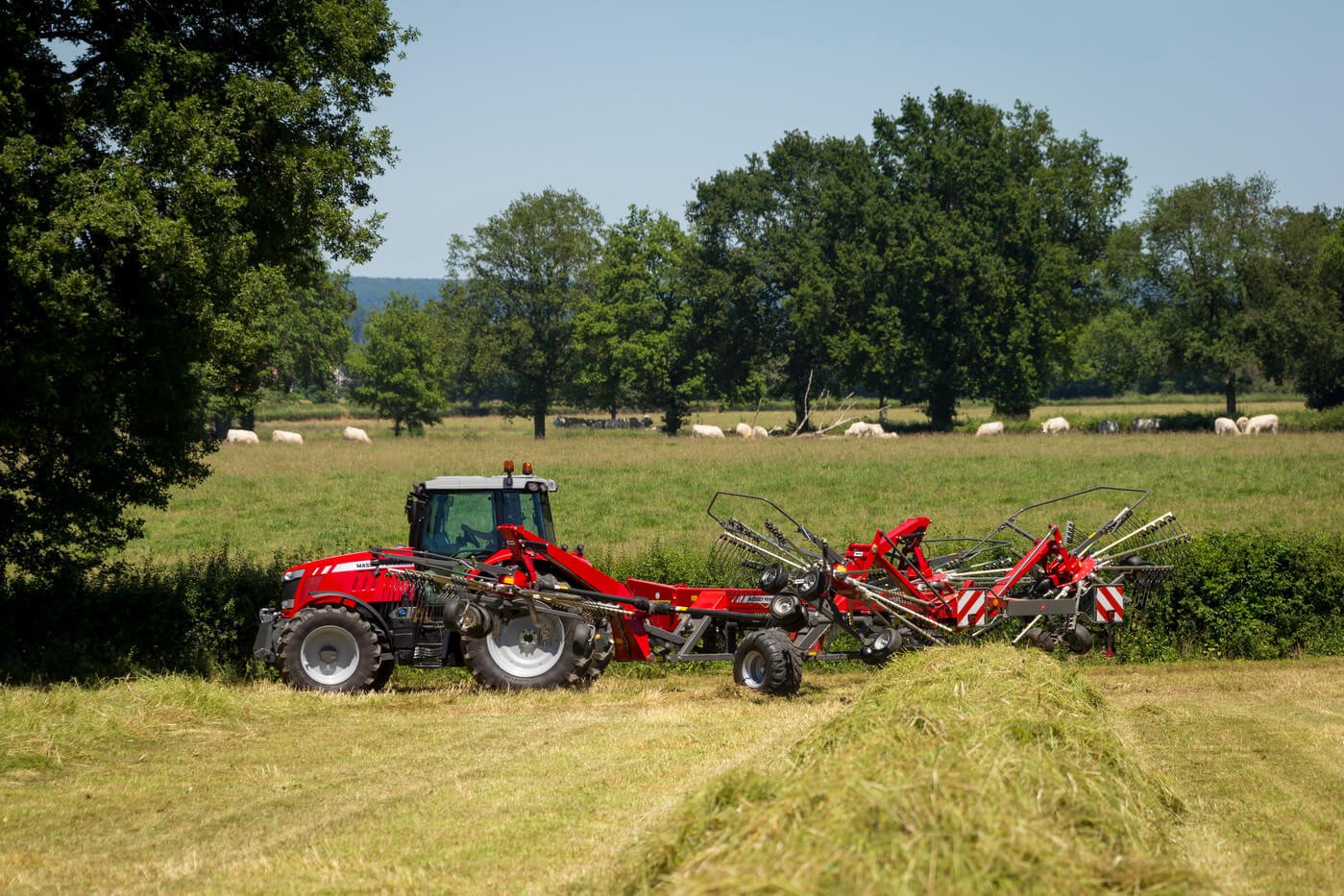

MF Rakes image

MF Rakes RK Series Rotary Rakes SPECIFICATIONS

Available Models - Single-Rotor rakes

Model Mounting category Working Width (m) Tine arms per rotor Power demand (HP) PTO (rpm)
MF RK 341 DN Cat I and II 3.40 8 23 540
MF RK 361 DN Cat I and II 3.60 10 27 540
MF RK 421 DN Cat I and II 4.20 12 41 540
MF RK 451 DN Drawbar 4.20 12 41 540
MF RK 450 DN Cat I and II 4.50 12 41 540



Available Models - Two Rotor Side Swath Delivery

Model Mounting category Working Width (m) Tine arms per rotor Power demand (HP) PTO (rpm)
MF RK 702 SDX-TR Trailed 6.3 - 7.00 12 45 540
MF RK 772 SD-TRC Cat I and II 6.60 - 7.70 12 41 540
MF RK 842 SD-TRC PRO Cat II 7.80 - 8.40 13 60 540
MF RK 762 TRC Cat II 6.80 - 7.60 12 41 540



Available Models - Two Rotor Centre Swath Delivery

Model Mounting category Working Width (m) Tine arms per rotor Power demand (HP) PTO (rpm)
MF RK 662 TRC Cat I and II 5.80 - 6.60 10 26 540
MF RK 762 TRC Cat II 6.80 - 7.60 12 41 540
MF RK.862 TRC Cat II 7.60 - 8.60 13 60 540
MF RK.862 TRC PRO Cat II 7.60 - 8.60 13 60 540
MF RK.922 TRC Cat II 8.00 - 9.20 14 70 540
MF RK.922 TRC PRO Cat II 8.00 - 9.20 14 70 540
MF RK 1002 TRC PRO Cat II 8.80 - 10.00 15  80 540



Available Models - Four Rotor Rakes

Model Mounting category Working Width (m) Tine arms per rotor Power demand (HP) PTO (rpm)
MF RK 1254 TRC Cat II 12.50 12 80 540
